TRANSOURCE RoadRunner IH15G schematic – NBLB3 LA-6001P – NBLB5 LA-6001P – NBLB3/5 MB schematic
$5.52

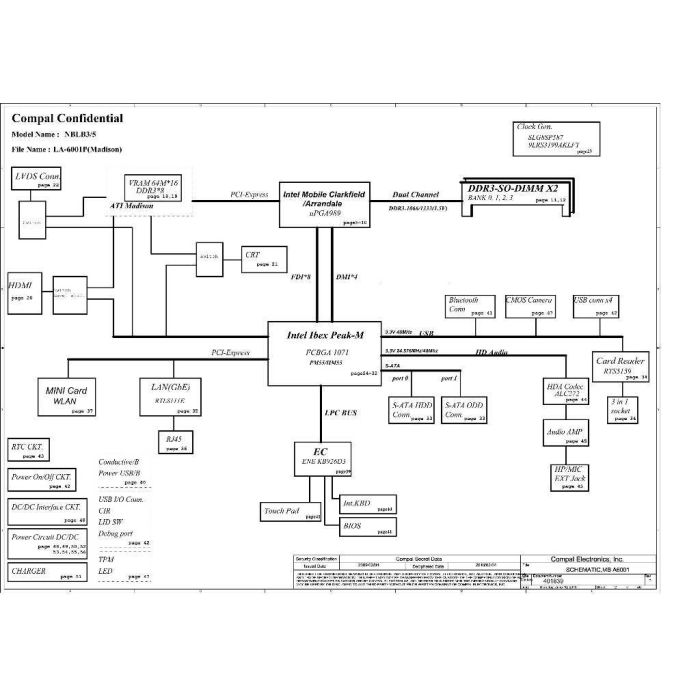

The motherboard schematic for TRANSOURCE RoadRunner NB-IH15G laptop/notebook, NBLB3/NBLB5 Mainboard Compal LA-6001P
CPU: Intel Mobile Clarkfield/Arrandale
Discrete VGA ATI Madison
Chipset: Intel Ibex Peak-M PM55/HM55
OEM: Compal Electronics
Model Name : NBLB3/5
File Name : LA-6001P(Madison)
Title: SCHEMATIC,MB A6001
Document Number: 401839
Rev: B
Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
