SHUTTLE B10IE01 schematic
$5.52

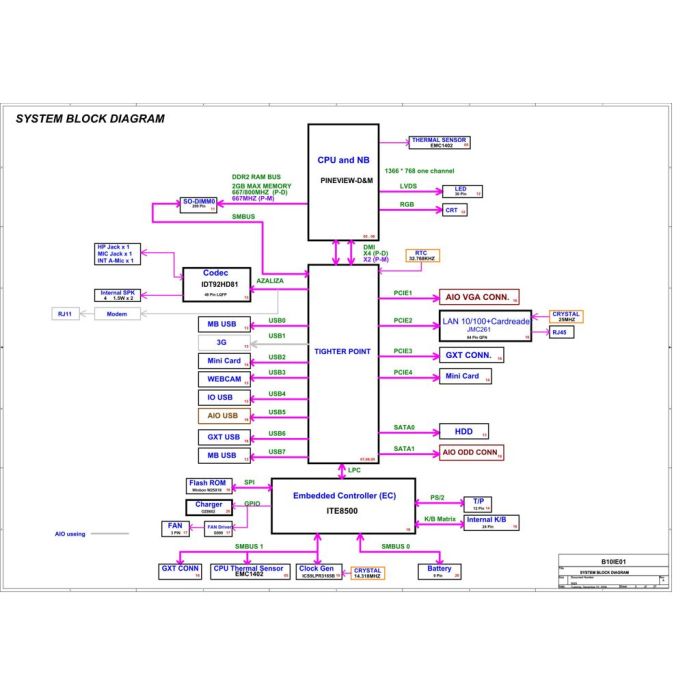

The motherboard schematic for SHUTTLE B10IE01 Mainboard,
CPU: PINEVIEW-D&M
Chipset: TIGHTER POINT
OEM: SHUTTLE
Project Name :B10IE01 Rev: A
Platform : PineView D / M + TigerPoint
Document Number: 5025
Rev: A
B1XIEXX
| Manufacture | SHUTTLE |
|---|---|
| File format |
