Samsung NP-R50 schematic – FIRENZE – BA41-00509A
$5.52

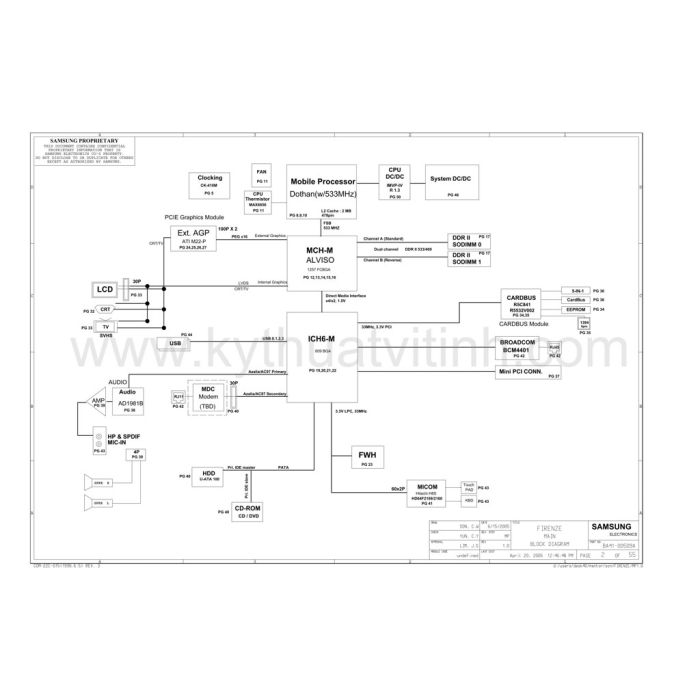

The motherboard schematic for Samsung NP-R50 laptop/notebook,
Model Name: FIRENZE
PBA Name: MAIN
PCB Part No: BA41-00509A
CPU: Dothan533
Chipset: ALVISO & ICH6-M
Remarks : EXTERNAL GFX
Format: PDF
| Manufacture | SAMSUNG |
|---|---|
| File format |
