MITAC 80X0DX schematic – 316800400001 – 411800400001 – Rev R0C
$5.52

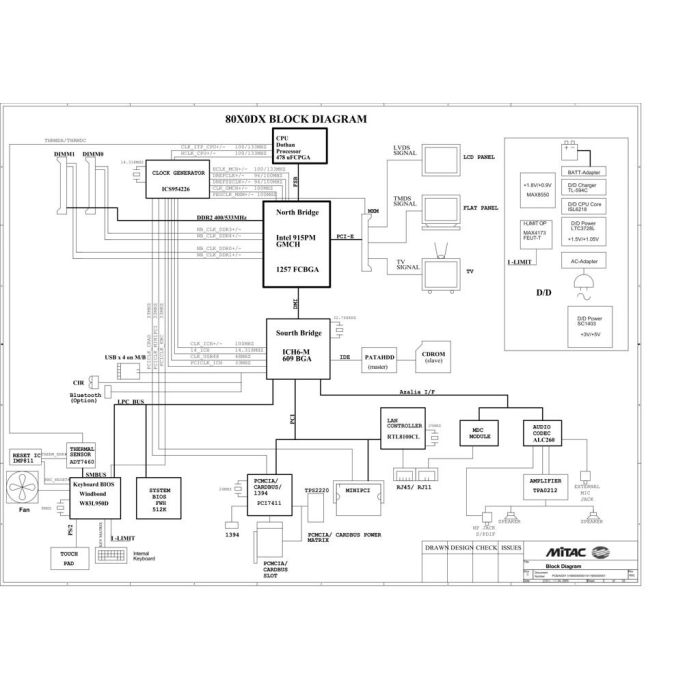

The motherboard schematic for MITAC 80X0DX R0C
CPU: Dothan
North Bridge: Intel 915PM GMCH
South Bridge: ICH6-M
OEM: MITAC
Project Code : G197
Product Code: 8004
PCB P/N: 316800400001
ASSY P/N: 411800400001
MXM ASSY P/N: 411800400004
MXM PCB P/N: 316800100001
Document Number : PCB/ASSY 316800400001/411800400001
Rev: R0C
Format: PDF
| Manufacture | MITAC |
|---|---|
| File format |
