Lenovo Thinkpad T500/W500 (PM45) schematic – CORONADO-5 EXT SOVP3
$5.52
COR5D-9 – COR-5 EXT SOVP3 PART NO: 43Y7016 EC NO: L54035/L54036

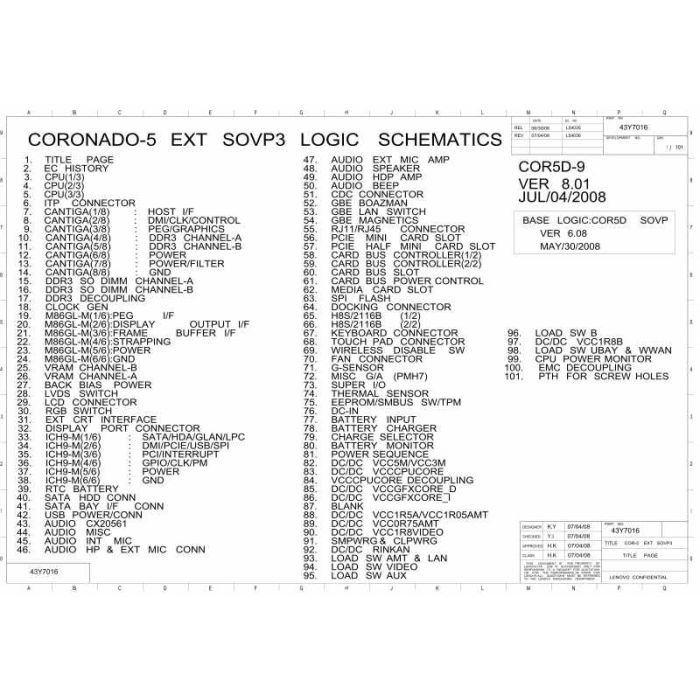

The motherboard schematic for Lenovo Thinkpad T500, Lenovo Thinkpad W500 notebook/laptop, CORONADO-5 EXT SOVP3 LOGIC SCHEMATICS Title: COR-5 EXT SOVP3 PART NO: 43Y7016 EC NO: L54035/L54036 COR5D-9 VER 8.01 JUL/04/2008 BASE LOGIC:COR5D SOVP VER 6.08 MAY/30/2008 Format: PDF
| Manufacture | LENOVO |
|---|---|
| File format |
