Lenovo Ideapad Z360 schematic - LL7A
$5.52

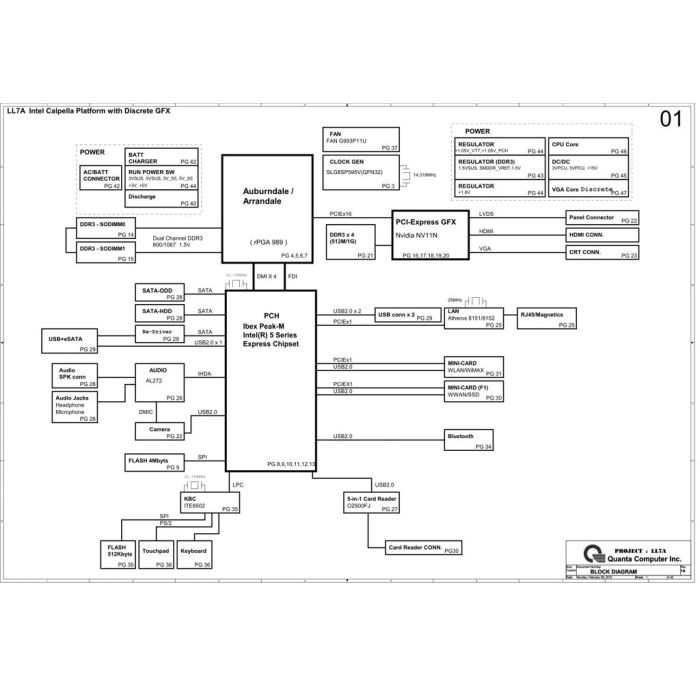

The motherboard schematic for Lenovo Ideapad Z360 laptop/notebook, Quanta LL7A, Intel Calpella Platform with Discrete GFX.
CPU: Auburndale /Arrandale
Discrete VGA Nvidia NV11N
Chipset: PCH Ibex Peak-M Intel(R) 5 Series Express Chipset
OEM: Quanta Computer Inc.
PROJECT: LL7A
REV: 1A
Format: PDF
Total Pages: 42
File size: 1.53MB
| Manufacture | QUANTA |
|---|---|
| File format |
