Lenovo IdeaPad S10-3t schematic – Caucasus 2 (Pine Trail) – FL2
$5.52

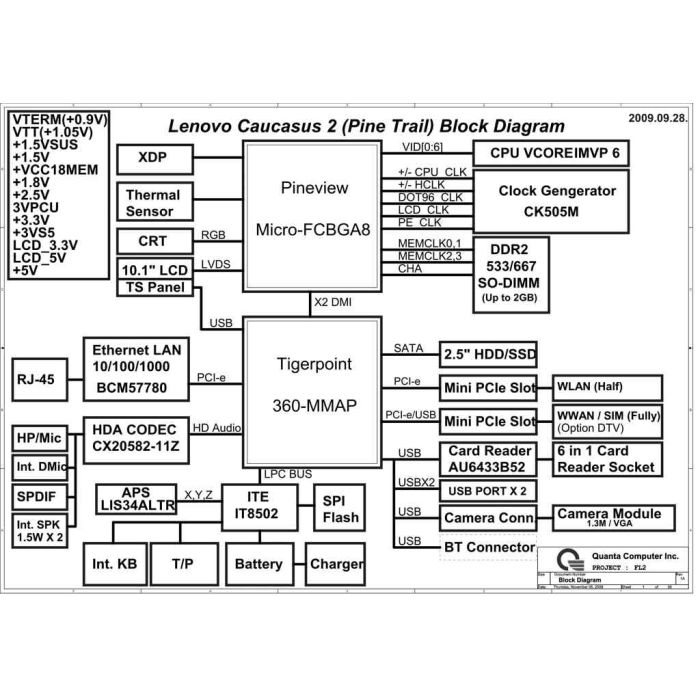

The motherboard schematic for Lenovo IdeaPad S10-3t laptop/notebook, Quanta FL2
CPU: Pineview Micro-FCBGA8
Chipset: Tigerpoint 360-MMAP
OEM: Quanta Computer Inc.
PROJECT: FL2
REV: 1A
Format: PDF
| Manufacture | QUANTA |
|---|---|
| File format |
