Lenovo IdeaPad G400/G490 schematic – LA-9631P
$5.52

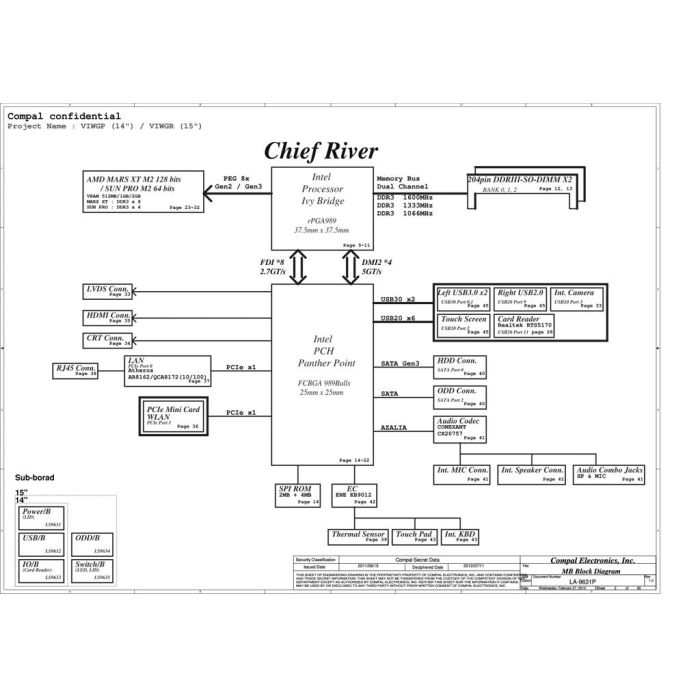

The schematic diagram for Lenovo IdeaPad G400, Lenovo IdeaPad G490 laptop/notebook, Compal LA-9631P Mainboard
CPU: Intel Ivy Bridge + DDR3
Discrete VGA AMD MARS XT M2 128 bits / SUN PRO M2 64 bits
Chipset: Intel PCH Panther Point
OEM: Compal Electronics, Inc.
Project Name : VIWGP (14″) / VIWGR (15″)
Document Number: LA-9631P
Rev: 1.0
Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
