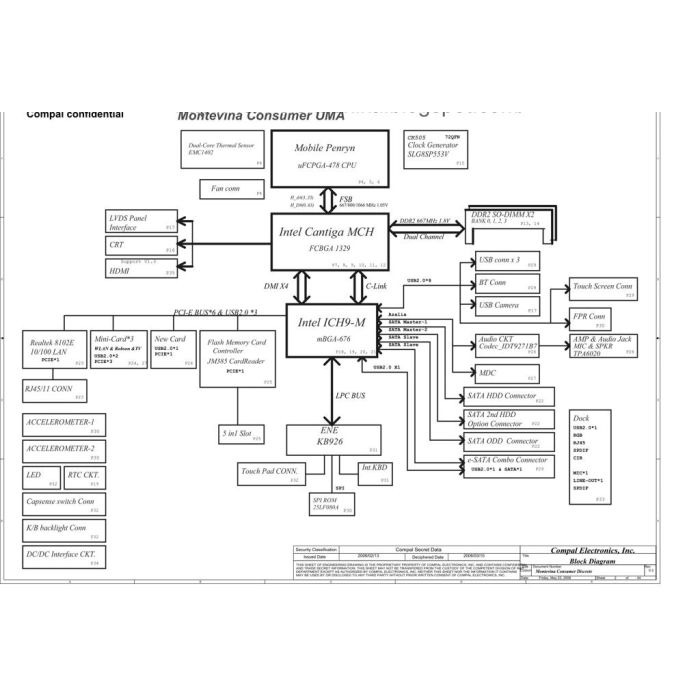

HP Pavilion DV7 (UMA) schematic – Montevina Consumer UMA – JAK00 LA-4081P
$5.52
The motherboard schematic for HP Pavilion DV7 (UMA) laptop/notebook, JAK00 Mainboard Compal LA-4081P
CPU: Mobile Penryn
North Bridge: Intel Cantiga MCH
South Bridge: Intel ICH9-M
OEM: Compal Electronics
Document Number: Montevina Consumer UMA
Revision: 0.3
Format: PDF
Total Pages: 44
| Manufacture | COMPAL |
|---|---|
| File format |
