Fujitsu Siemens Amilo Li1718/Li1720 schematic – Y4A – 05245-3
$5.52

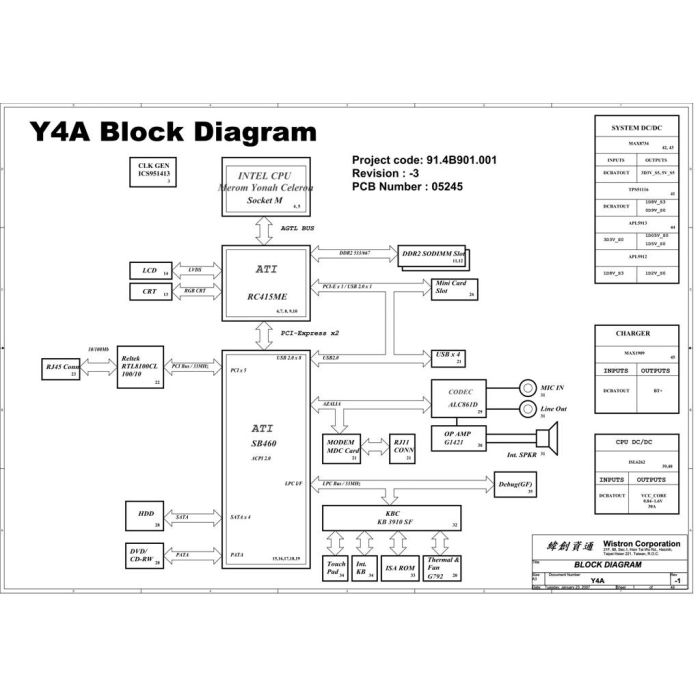

The motherboard schematic for Fujitsu Siemens Amilo Li 1718, Fujitsu Siemens Amilo Li 1728 laptop/notebook, Wistron Y4A
CPU: Merom/Yonah Celeron
North Bridge: ATI RC415ME
South Bridge: ATI SB460
OEM: Wistron Corporation.
Project code: 91.4B901.001
Revision : -3
PCB Number : 05245
Document Number: Y4A
Format: PDF
Total Pages: 49
| Manufacture | WISTRON |
|---|---|
| File format | N/A |
