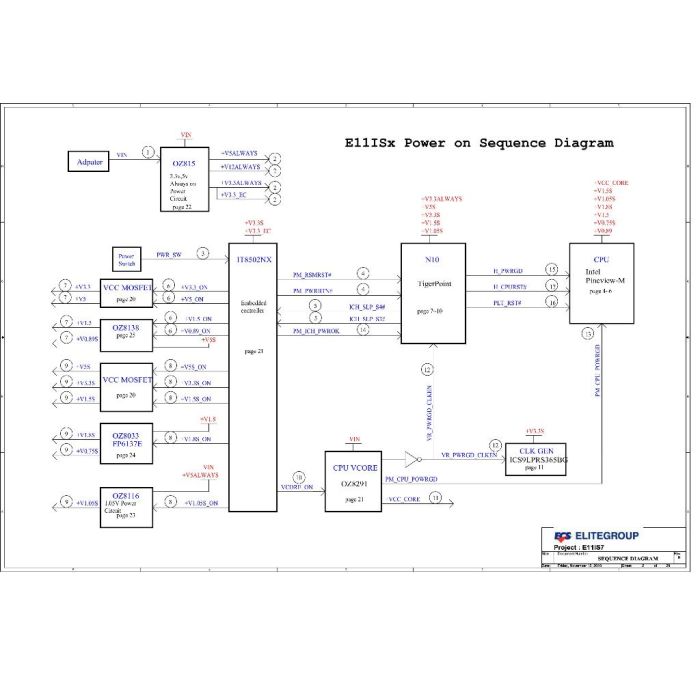

ECS E11IS7 schematic – 37GE11300-B0
$5.52
The motherboard schematic for ECS E11IS2 Mainboard, Intel CMPC2010 E11IS2 Schematics
CPU: Intel Pineview-M
Chipset: Tigerpoint
OEM: Elitegroup Computer Systems
Project : E11IS7
MB PCB P/N : 37GE11300-B0
IO BD PCB P/N : 35G3E1130-B0
Rev: B
Format: PDF
| Manufacture | ECS |
|---|---|
| File format |
