Dell Vostro 1710 (UMA/Discrete) schematic – JAL60 LA-4131P
$5.52
ANRJAL6000 (JAL60)

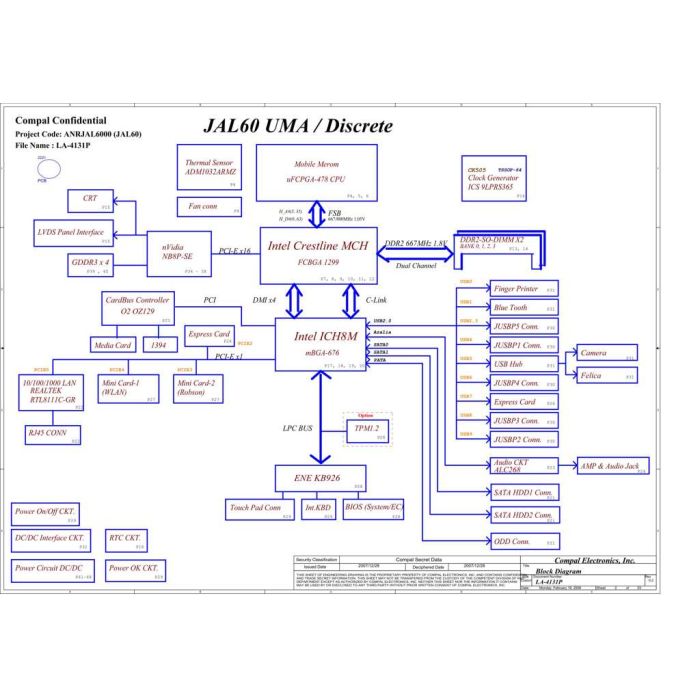

The motherboard schematic for Dell Vostro 1710 laptop/notebook, JAL60 Mainboard, Compal LA-4131P . CPU: Mobile Merom North Bridge: Intel Crestline MCH + nVidia NB8P-SE South Bridge: ICH8-M OEM: Compal Electronics, Inc. Project code: ANRJAL6000 (JAL60) File Name: LA-4131P Document Number: LA-4131P Revision: 0.2 Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
