Dell Studio XPS 1340 (UMA) schematic – IM3 (XPS-Jolie)
$5.52

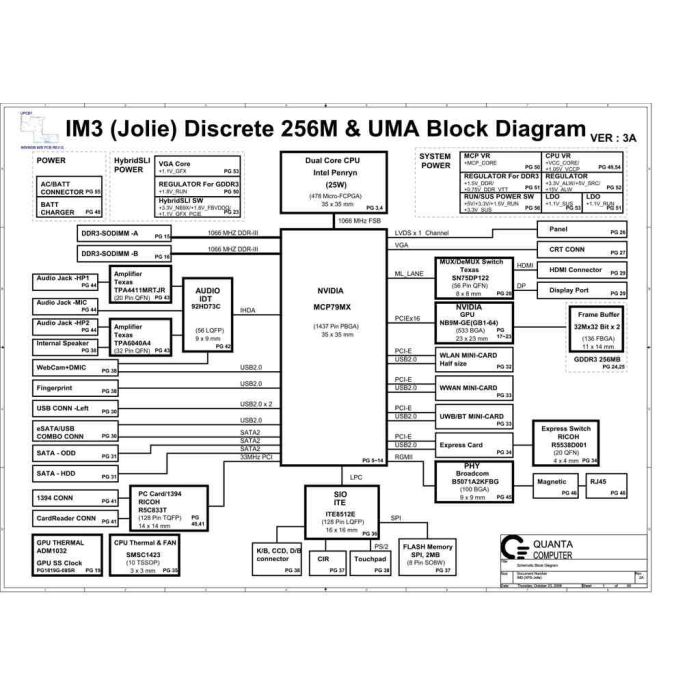

The motherboard schematic for Dell IM3 (Jolie) Discrete 256M & UMA laptop/notebook, Quanta IM3 (XPS-Jolie)
CPU: Dual Core CPU Intel Penryn 25W
Chipset: NVIDIA MCP79MX
OEM: Quanta Computer
IM3/IM3B M/B PCB REV:G
Document Number: IM3 (XPS-Jolie)
Rev: 2A
Format: PDF
| Manufacture | QUANTA |
|---|---|
| File format |
