Dell Precision M6300 schematic – IAQ20 LA-3751P – JM679
$5.52
The motherboard schematic for Dell Precision M6300 laptop/notebook, IAQ20 Mainboard, Compal LA-3751P
CPU: Pentium-M Merom -4MB (Socket P)
North Bridge: INTEL Crestline
South Bridge: ICH8-M
OEM: Compal Electronics, Inc.
MODEL NAME : IAQ20
PCB NO : LA-3751P (DA800008Y0L)
BOM P/N: 46149031L0121

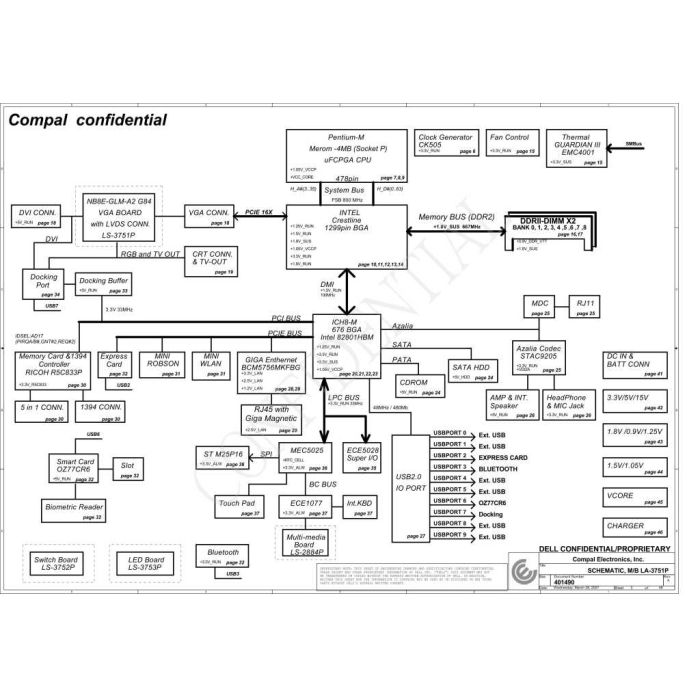

Title: SCHEMATIC, M/B LA-3751P
Document Number: 401490
Rev: A
Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
