Dell Latitude E4300 schematic - JAL10 LA-4151P
$5.52

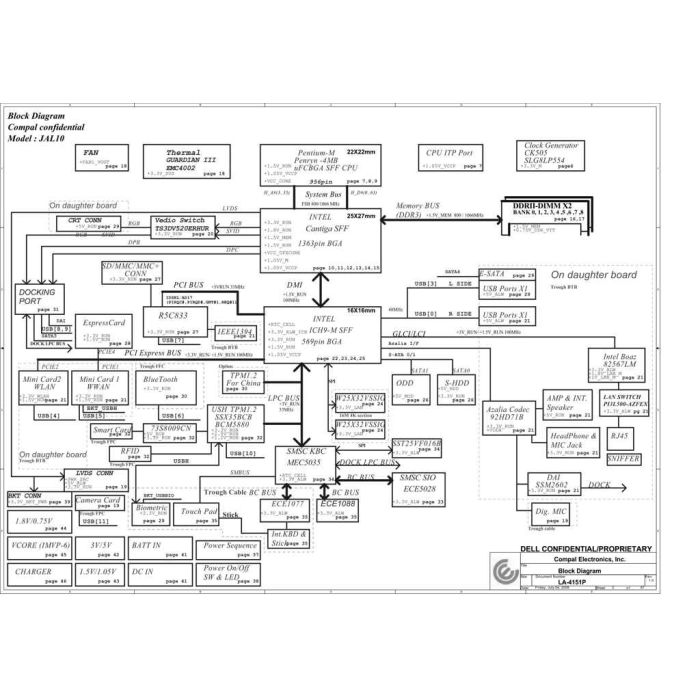

The schematic diagram for Dell Latitude E4300 notebook/laptop, JAL10 Mainboard, Compal LA-4151P,M09 Lola UMA.
CPU: Pentium-M Penryn -4MB
Chipset: INTEL Cantiga SFF + ICH9-M SFF
OEM: Compal Electronics, Inc.
Model: JAL10
PCB NO: LA4151P(DAA00000Q1L)
Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
