Dell Inspiron 13z schematic – Inspiron Z INTEL
$5.52

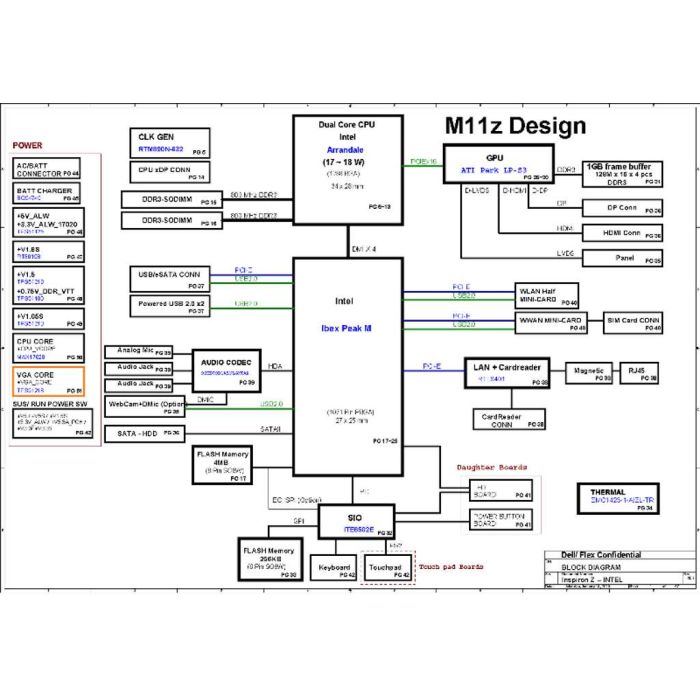

The motherboard schematic for Dell Inspiron 13z laptop/notebook,
CPU: Dual Core Arrandale
Discrete GPU ATI Park LP-S3
Chipset: Intel Ibex Peak M
OEM: Dell/ Flex Confidential
Document Number: Inspiron Z — INTEL
Rev: X01
Format: PDF
Total Pages: 57
| Manufacture | FLEX |
|---|---|
| File format | N/A |
