Asus M7V Motherboard schematic
$5.52

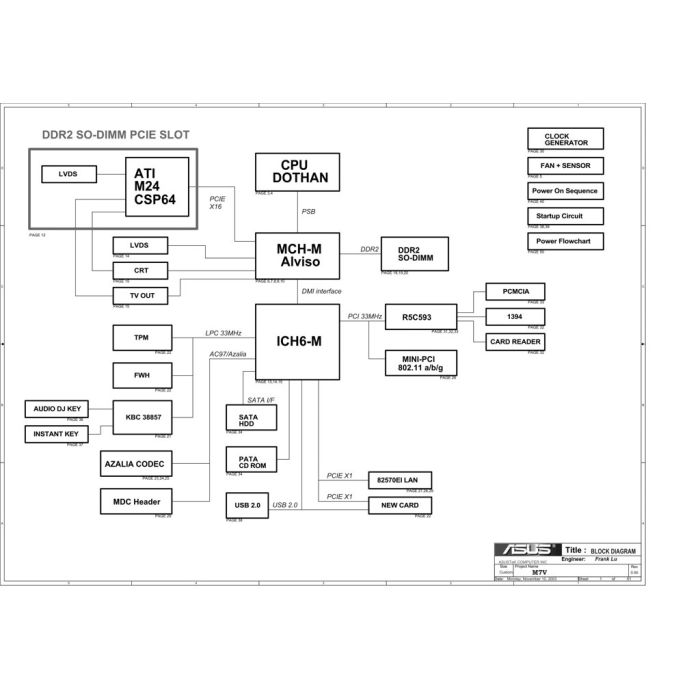

The motherboard schematic for ASUS M7V notebook.
CPU: Dothan
North Bridge: MCH-M Alviso + ATI M24 CSP64
South Bridge: ICH6-M
Project Name: M7V
Revision: 0.95
Format: PDF
| Manufacture | ASUS |
|---|---|
| File format |
