Asus A6G schematic
$5.52

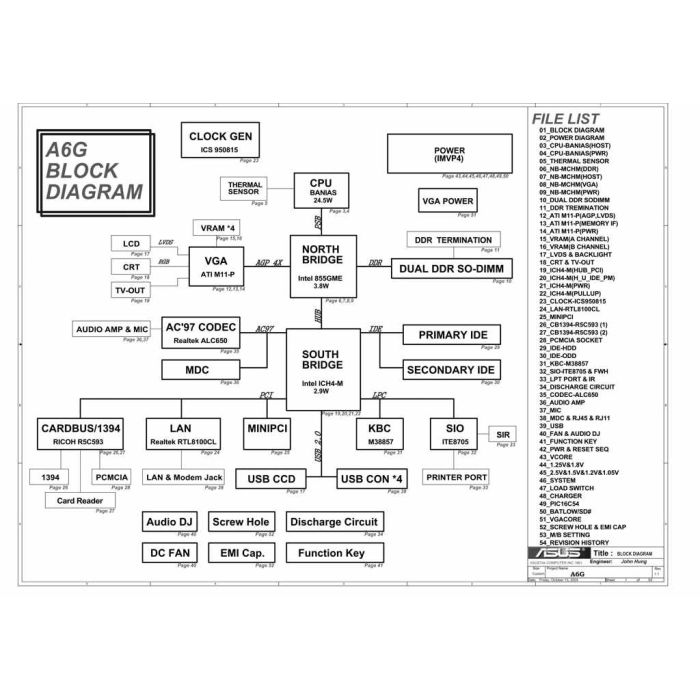

The motherboard schematic for ASUS A6G notebook/laptop.
CPU: BANIAS
North Bridge: Intel 855GME + ATI M11-P
South Bridge: Intel ICH4-M
Project Name: A6G
Revision: 1.1
Format: PDF
Total Pages: 54
File size: 1.06MB
| Manufacture | ASUS |
|---|---|
| File format |
