Acer TravelMate 5520/5520G schematic – Pomona/Texcoco – 06244-1 – 55.4T701.001

Name: Acer TravelMate 5520/5520G schematic – Pomona/Texcoco – 06244-1 – 55.4T701.001
Brand: WISTRON
SKU: Acer TravelMate 5520/5520G schematic – Pomona/Texcoco
Price: 5.52 USD
Availability: InStock

$5.52

06244-1 – 55.4T701.001

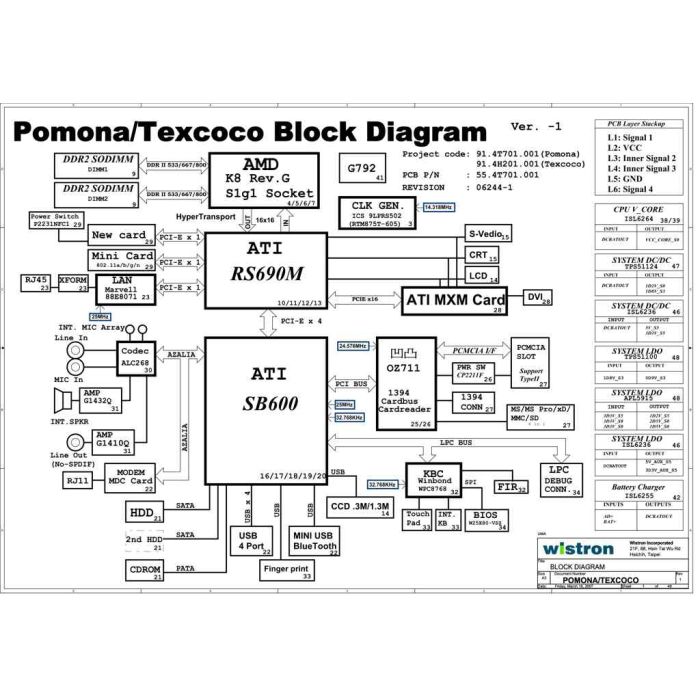

The motherboard schematic for Acer TravelMate 5520, Acer TravelMate 5520G laptop/notebook, Wistron Pomona/Texcoco Mainboard CPU: AMD K8 Rev.G S1g1 North Bridge: ATI RS690M South Bridge: ATI SB600 OEM: Wistron Corporation Project code: 91.4T701.001(Pomona) 91.4H201.001(Texcoco) PCB P/N : 55.4T701.001 REVISION : 06244-1 Document Number: POMONA/TEXCOCO Rev: 1 Format: PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

More Information
Manufacture	WISTRON
File format	PDF
