Acer Aspire M5-581T schematic – Q5LJ1 COMPAL LA-8203P
$5.52
MA51-HX – Acer Q5LJ1 M/B schematic

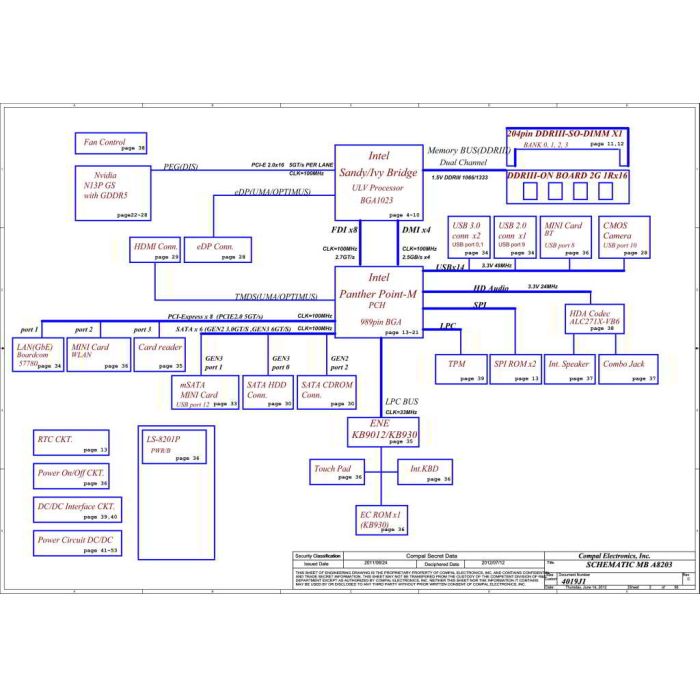

The motherboard schematic diagram for Acer Aspire M5-581T Ultrabook, Compal LA-8203P, Q5LJ1 M/B Schematic Documents CPU: Intel Sandy/Ivy Bridge ULV + Nvidia N13P GS with GDDR5 Chipset: PCH Panther Point-M PCH OEM: Compal Electronics, Inc. TITLE: SCHEMATIC MB A8203 Document Number: 4019J1 REV: C Format: PDF
| Manufacture | COMPAL |
|---|---|
| File format |
