Acer Aspire 7736/7736Z/7736ZG schematic – JV71-MV DDR3 Madison
$5.52

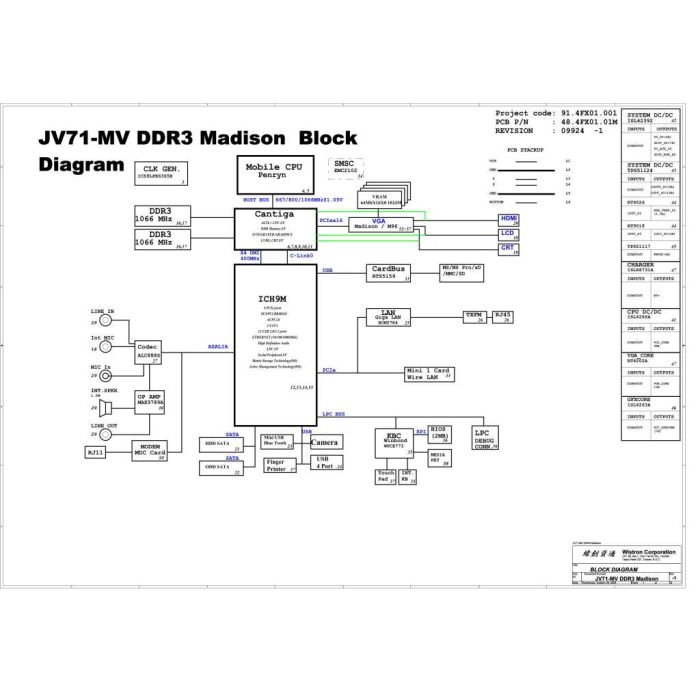

The motherboard schematic for Acer Aspire 7736, Acer Aspire 7736Z, Acer Aspire 7736ZG laptop/notebook, Wistron JV71-MV DDR3 Madison
CPU: Mobile Penryn
North Bridge: Cantiga + DDR3 + VGA Madison / M96
South Bridge: ICH9M
OEM: Wistron Corporation
Project code: 91.4FX01.001
PCB P/N : 48.4FX01.01M
REVISION : 09924 -1
Document Number: JV71-MV DDR3 Madison
Rev: -1
Format: PDF
