Acer Aspire 4743/4743Z schematic – 10277-1 – 91.4NI01.001 – JE43-CP
$5.52
10277-1 – 91.4NI01.001

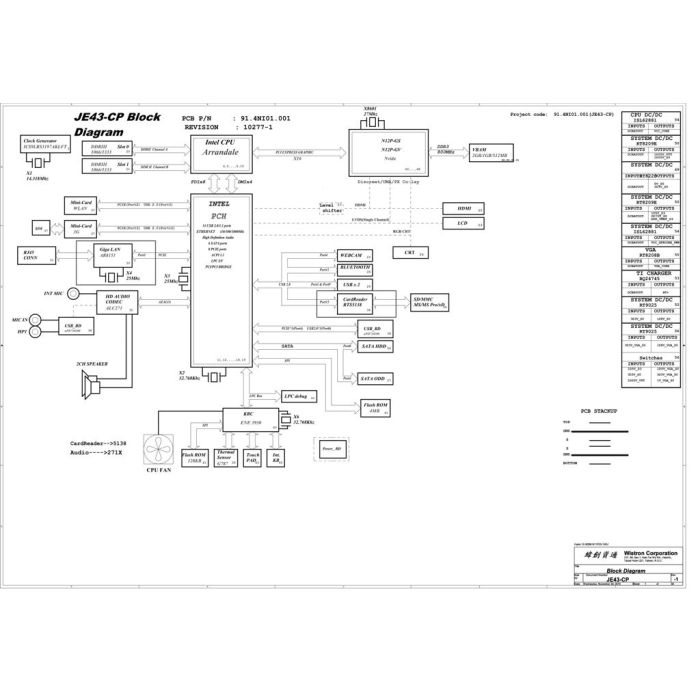

The motherboard schematic for Acer Aspire 4743, Acer Aspire 4743Z laptop/notebook, Wistron JE43-CP CPU: Arrandale Discrete VGA Nvida N12P-GS/N12P-GV Chipset: Intel PCH OEM: Wistron Corporation Project code: 91.4NI01.001(JE43-CP) PCB P/N : 91.4NI01.001 REVISION : 10277-1 Document Number: JE43-CP Rev: -1 Format: PDF Total Pages: 69
| Manufacture | WISTRON |
|---|---|
| File format |
