HP Pavilion dv7 series (AMD) schematic – JBK00 LA-4092P – Consumer AMD UMA/DISCRETE 17″
10,00 лв.
The motherboard schematic for HP Pavilion dv7 series (AMD), JBK00 Motherboard, Compal LA-4092P, Consumer AMD UMA/DISCRETE 17″

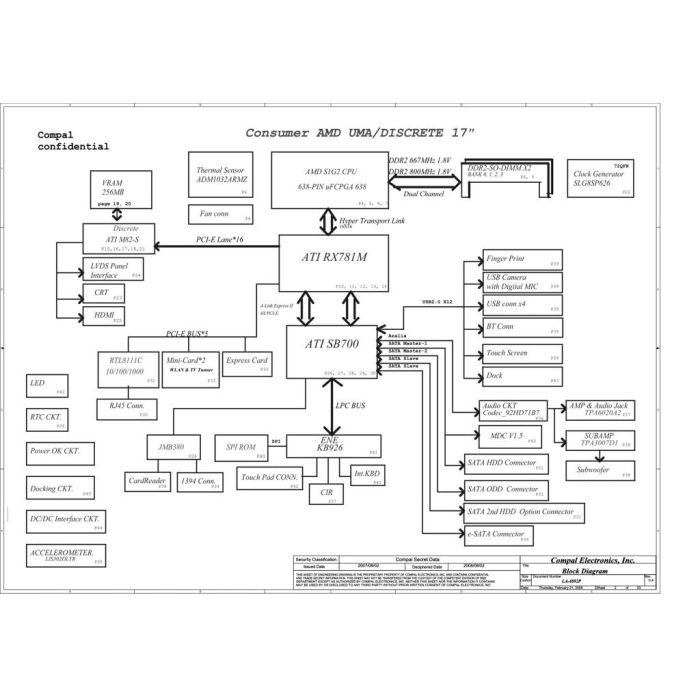

JBK00 LA-4092P Schematics Document
CPU: AMD S1G2
North Bridge: ATI RX781M + Discrete ATI M82-S
South Bridge: ATI SB700
OEM: Compal Electronics
Document Number: LA-4092P
Revision: 0.4
Format: PDF
Total Pages: 53
| Производител | COMPAL |
|---|---|
| Тип файл |
