Fujitsu Siemens Amilo L7300 schematic – PS4

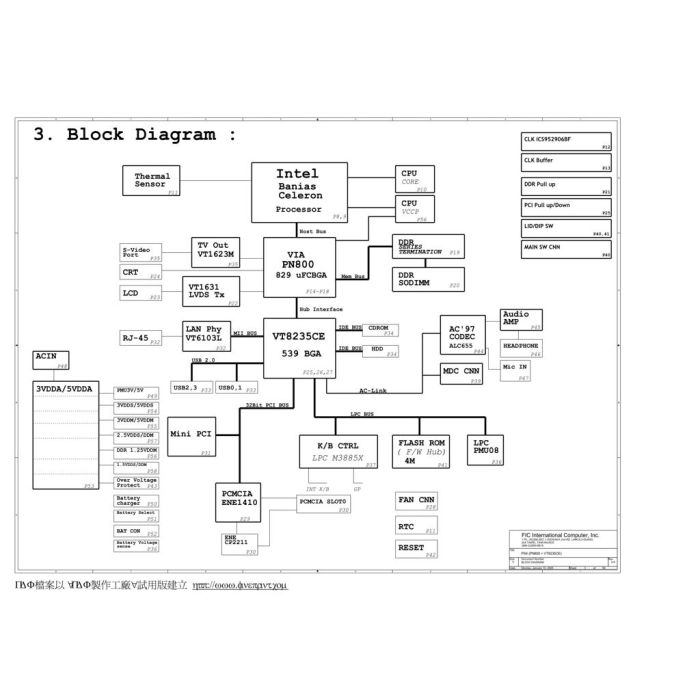

The motherboard schematic for Fujitsu Siemens AMILO L7300 laptop/notebook. Board name: Mother Board Schematic Project: PS4 Version: 0.6 Initial Date : January 19 , 2004 CPU: Intel Banias Celeron North Bridge: VIA PN800 South Bridge: VT8235CE OEM: FIC International Computer, Inc. Title: PS4 (PN800 + VT8235CE) Rev: 0.6 Format: PDF Total Pages: 59
