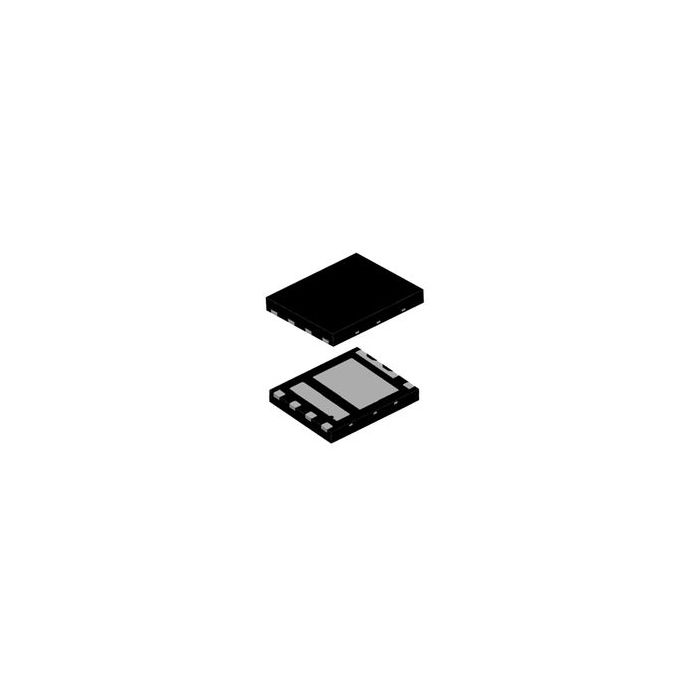

FAIRCHILD FDMS7620S, MOSFET, NN CH, 30V, 13A/22A, POWER56

MOSFET, NN CH, 30V, 13A/22A, POWER56 Transistor Polarity:Dual N Channel Continuous Drain Current Id:13A Drain Source Voltage Vds:30V On Resistance Rds(on):0.0152ohm Rds(on) Test Voltage Vgs:10V Threshold Voltage Vgs Typ:2.2V Power Dissipation Pd:2.2W Operating Temperature Min:-55_C Operating Temperature Max:150_C Transistor Case Style:Power 56 No. of Pins:8 MSL:MSL 1 - Unlimited SVHC:No SVHC (19-Dec-2012) Operating Temperature Range:-55_C to +150_C
