Dell Studio 1745 schematic – KAT00 Discrete – LA-5151P
10,00 лв.
DA80000E400

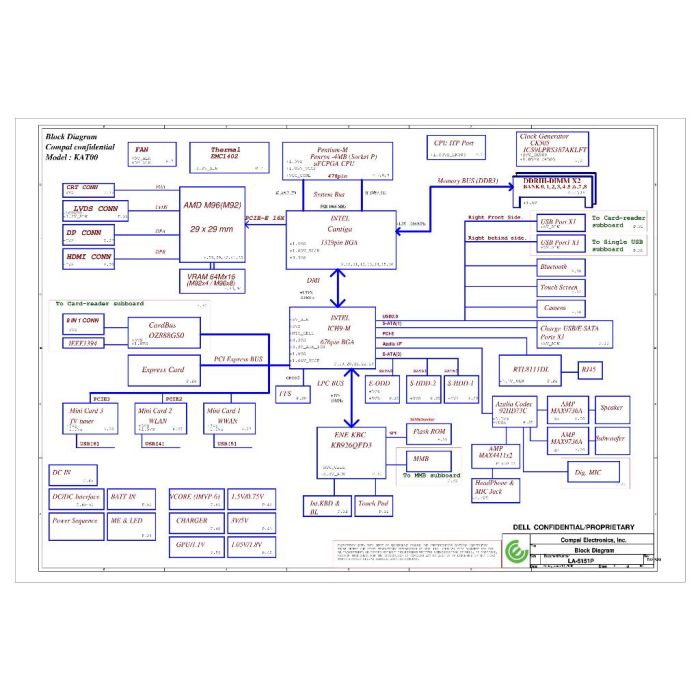

The motherboard schematic for Dell Studio 1745 laptop/notebook, KAT00 Mainboard , Compal LA-5151P CPU: Pentium-M Penryn -4MB (Socket P) North Bridge: INTEL Cantiga + AMD M96(M92) South Bridge: INTEL ICH9-M OEM: Compal Electronics, Inc. Model Name: KAT00 DIS PCB NO : LA-5151P PCB P/N: DA80000E400 BOM P/N: 43169531L01 (M92) 43169531L02 (M96) Document Number: LA-5151P Rev: R10 (A00) Format: PDF
| Производител | COMPAL |
|---|---|
| Тип файл |
