Dell Latitude E6420 (Discrete) schematic – PAL51 LA-6592P – E3 MACALLAN 14″ SG
10,00 лв.

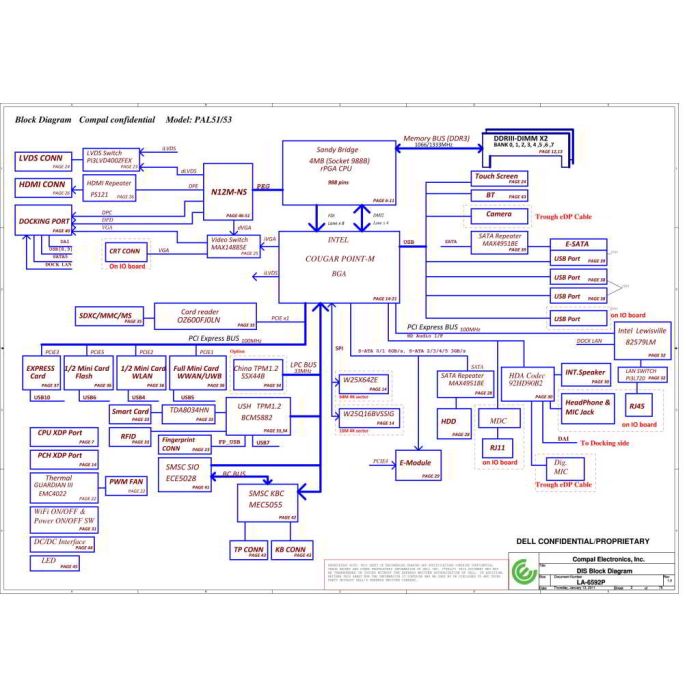

The schematic diagram for Dell Latitude E6420 (Discrete) notebook/laptop, PAL51/53 Mainboard, Compal LA-6592P.
CPU: Sandy Bridge 4MB (Socket 988B)
Discrere VGA N12M-NS
Chipset: INTEL COUGAR POINT-M
OEM: Compal Electronics, Inc.
MODEL NAME : PAL51/53
PCB NO : LA-6592P (DAA00001V10)
BOM P/N: 43192931L01
Document Number: LA-6592P
Rev: 1.0
Format: PDF
