Dell Latitude D620 (Discrete) schematic – HAL00 LA-2792

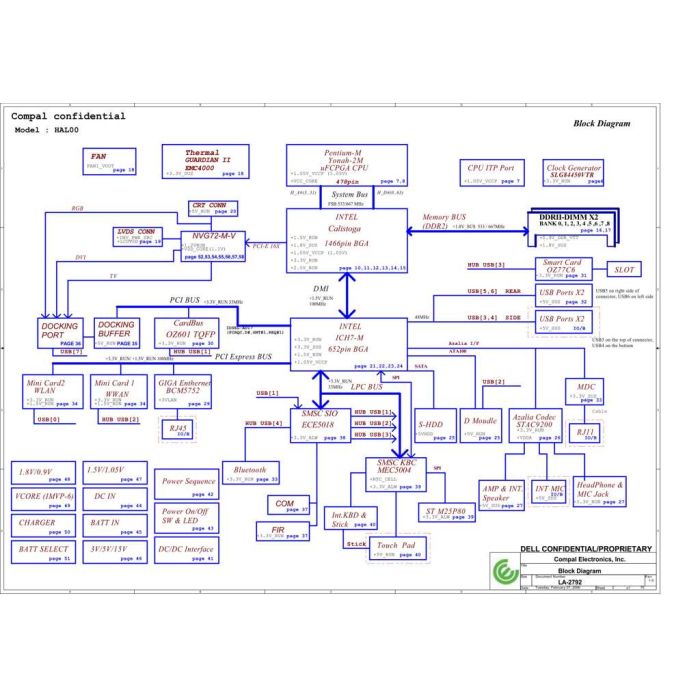

The motherboard schematic for Dell Latitude D620 (Discrete) laptop/notebook, HAL00 Mainboard, Compal LA-2792 CPU: Pentium-M/Yonah-2M North Bridge: Calistoga South Bridge: ICH7-M + NVG72-M-V OEM: Compal Electronics Document Number: LA-2792 PCB NO: LA-2792 MODEL NAME: HAL00 COMPAL P/N: 45135731L01 BOM NO. 45135731L01 PCB P/N: DAA0000051L REV : 1.0 (DELL: A00) Format: PDF
