Compal JAW91 LA-4011P schematic
10,00 лв.

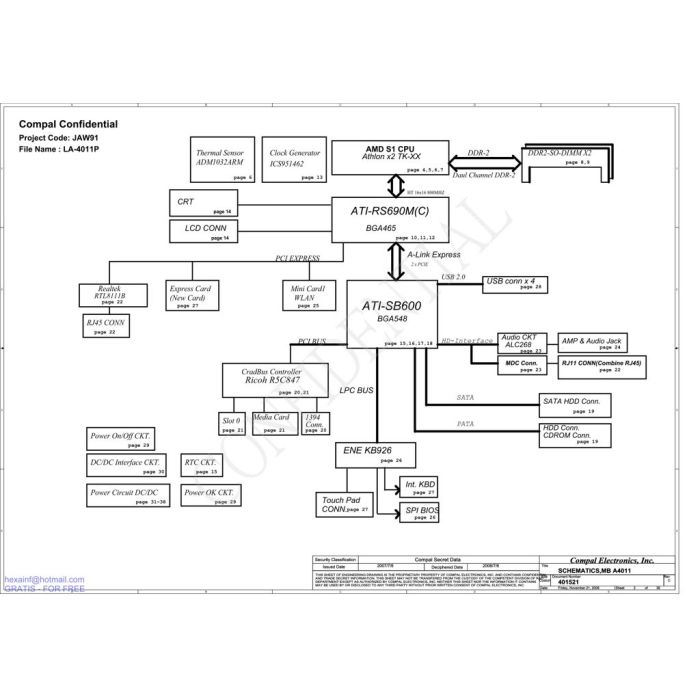

The motherboard schematic for JAW91 Motherboard, Compal LA-4011P, JAW91 Schematics Document
CPU: AMD S1 CPU Athlon x2 TK-XX
North Bridge: ATI-RS690M(C)
South Bridge: ATI-SB600
OEM: Compal Electronics
Tiitle: SCHEMATICS,MB A4011
Project Code: JAW91
File Name : LA-4011P
Document Number: 401521
Revision: C
Format: PDF
| Производител | COMPAL |
|---|---|
| Тип файл |
