ACER TravelMate 4230 4530 schematic - LA-4182P

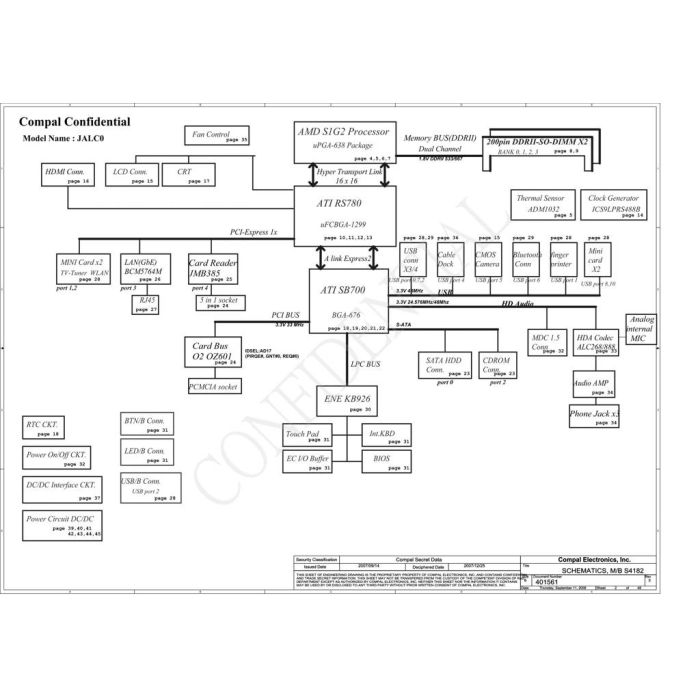

This document is PDF format, include motherboard schematic diagram for acer TravelMate 4230 and acer TravelMate 4530 laptop/notebook, AMD Griffin Processor with RS780M+SB700(With ATI MXM/B), Compal LA-4182P, JALC0. CPU: AMD S1G2 North Bridge: ATI RS780M South Bridge: ATI SB700 OEM: Compal Electronics, Inc. Model Name: JALC0 Title: SCHEMATICS, M/B S4182 Document Number: 401561 Revision: E Format: PDF Total Pages: 48 File size: 1.09MB Language: English
